- Use with Converters and SPGs in Order to Have More Outputs
- DA for Analog Video Signals
- DA for Tri-Level Sync
- DA for AES Digital Audio, AC-3 and Dolby E
- DA for SMPTE 310M

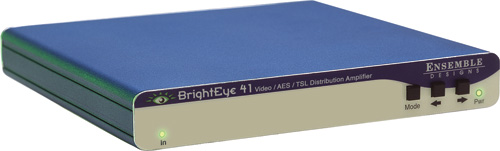

BrightEye 41 is a distribution amplifier that accepts analog video, AES digital audio, or Tri-Level Sync signal. It can also be used with SMPTE 310M, Dolby E and AC-3 signals. It provides unity gain fanout over a frequency range of DC to 10 MHz. It can handle composite and component analog video, coaxial AES digital audio, or a High Definition Tri-Level Sync signal.
When using a digital to analog video converter and multiple outputs are needed, BrightEye 41 can be used to distribute and provide those additional output signals. BrightEye 41 works well with video converters BrightEye 10 and BrightEye 16. BrightEye 41 is also useful in conjunction with the BrightEye 54 sync pulse generator and test signal generator for distributing Tri-Level Sync, AES and composite signals.
This is a simple device, with no USB port and no interface to BrightEye Mac or PC software. Front panel indicators show the presence of an input signal and power.
