Description

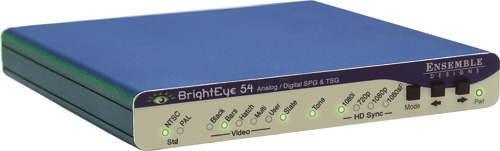

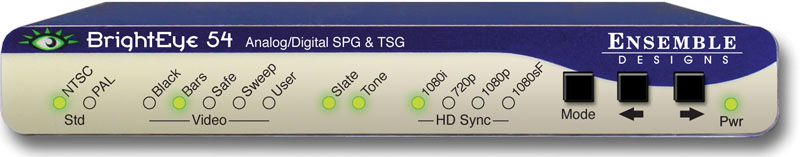

BrightEye 54 is a master sync generator and test signal generator that is perfect as a master reference generator for remote trucks, desktop and fly packs. It is a stable timing source, operating from an internal precision standard that meets full broadcast specifications.

Color Black, Bars, Crosshatch, Multiburst, and SDI Checkfield (Pathological) are just some of the signals simultaneously available on the SDI and analog composite outputs.

An ID slate with user programmable text can overlay the test pattern. The cyclops feature adds a motion element to the video test signal, handy for live applications.

The Tri-Level Sync output provides reference to high definition equipment, such as VTRs, disc recorders and workstations. There are a wide variety of user selectable formats including: 720p, 1080i, 1080sF, and 1080p. Format selections and other controls are accessed through BrightEye Mac or PC software. AES3id digital audio, analog audio and embedded audio reference outputs are provided.

BrightEye 54 Specifications

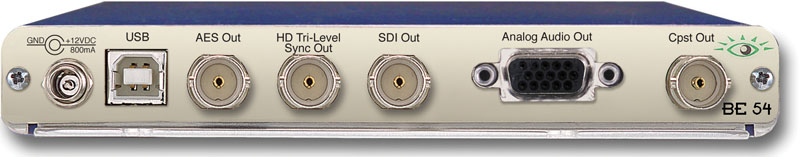

Composite Output

• Number: One
• Signal Type: NTSC / PAL
• Impedance: 75 Ω
• Return Loss: >40 dB DC to 5.5 MHz
• Frequency Response: -0.1 dB 10 KHz to 5.0 MHz
• Output DC: ±50 mV
• K Factor: <1.0%
• Differential Phase: <1.0 degree
• SCH Phase: ±5 degrees

Accuracy and Timing Stability

• Internal TCXO
• PAL Fsc: 4.43361875 MHz +/- 1 Hz
• NTSC Fsc: 3.579545 MHz +/- 1 Hz
• 601 Fs: 27.000000 MHz +/- 5 Hz
• Long Term Drift: <1 ppm/year
• Analog Jitter: <1 ns
• Digital Jitter: <0.2 UI (0.13 UI typical)

Serial Digital Output

• Number: One
• Signal Type: Serial Digital (SMPTE 259M)
• Return Loss: >15 dB, DC to 270 MHz

AES Audio Output

• Number: One
• Type: AES3id, 1 KHz tone or silence
• Resolution: 24 bit

Analog Audio Output

• Number: One stereo pair or two mono
• Type: 1 KHz tone or silence
• Impedance: 30 Ω, balanced
• Reference Level: -10 to + 4 dBu, adjustable

Tri-Level Sync Output

• Number: One, 75 Ω
• Type:
  1080i (SMPTE 274M -5, 6) 50, 59.94
  720p (SMPTE 296M -2, 3) 50, 59.94
  1080p (SMPTE 274M -9, 11) 23.98, 24, 25 Hz
  1080sF (RP211 -14, 16) 23.98, 24, 25 Hz
• Output DC: ±50 mV
• Return Loss: >30 dB to 30 MHz

General Specifications

• Size: 5.625” W x 0.8” H x 5.5” D (143 mm x 20 mm x 140 mm) including connectors
• Power: 12 volts, 4 watts (100-230 VAC modular power supply)
• Temperature Range: 0 to 40° C ambient
• Relative Humidity: 0 to 95%, non-condensing
