BrightEye 43 3G/HD/SD/ASI Distribution Amplifier

• Use with Video Converters and TSGs in Order to Have More Outputs
• DA for Digital HD or SD Signals
• DA for 3G HD, Level A or Level B
• DA for ASI Signals
• Passes Embedded Audio

BrightEye 43 is a reclocking distribution amplifier that can be used with standard definition video signals, 3 Gb/s and 1.5 Gb/s high definition signals, or ASI signals. The signal is equalized, reclocked and delivered to the outputs.

This is a simple device with no USB port and no interface to BrightEye Mac or PC software. Front panel indicators show the presence of an input signal and power.

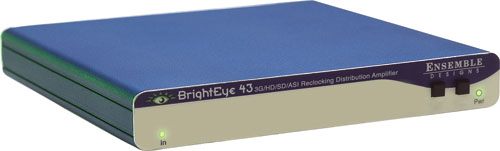

BrightEye 43 Front

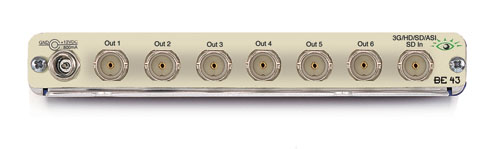

BrightEye 43 Rear
