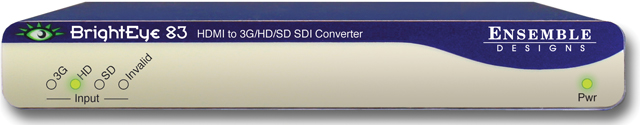

BrightEye 83 HDMI to 3G / HD / SD SDI Converter
- Guaranteed to work perfectly with your GoPro camera
- HDMI to HD and SD SDI Converter
- Use with Cameras and Other Sources that have an HDMI Output
- Passes Embedded Audio
Description
Convert HDMI to 3G/HD/SD SDI with the BrightEye 83. The output format follows the input, faithfully preserving the input’s resolution and frame rate. Perfect for GoPro, Replay and other video cameras and sources with an HDMI output, BrightEye 83 presents the serial digital video signal on two BNC outputs.
Signal monitoring and control is provided through the included BrightEye Mac and BrightEye PC software.
In compliance with the licensing restrictions on HDCP encrypted material, BrightEye 83 cannot convert encrypted signals to SDI form. For support of HDCP encrypted content check out the BrightEye 83-H.
Downloads
-
-
For software version 1.2.0
Specifications
Input
- Number One
- Type HDMI 1.3
- Format Supports HDMI signals which map to the video standards listed below
SDI Standards Supported
- 1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60 Hz
- 720p (SMPTE 296M -1,2,3) 50,59.94 or 60 Hz
- 1080p (SMPTE 274M -9,10,11) 23.98, 24, 25 Hz
- 1080sF (RP211 -14,15,16) 23.98, 24, 25 Hz
- 1080p (SMPTE 424M, 425M), 50, 59.94, 60, Level A
- 525i, 625i (SMPTE 259M)

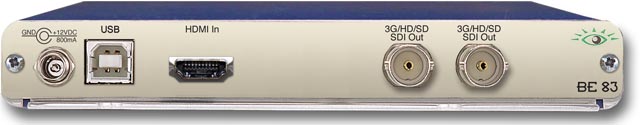

Serial Digital Output
- Number Two, BNC
- Signal Type Follows input
- Impedance 75 Ω
- Return Loss >15 dB to 1.485 GHz >10 dB to 2.97 GHz
- Output DC None (AC coupled)
General Specifications
- Size 5.625” W x 0.8” H x 5.5” D(143 mm x 20 mm x 140 mm) including connectors
- Power 12 volts, 5 watts (100-230 VAC modular power supply)
- Temperature Range 0 to 40° C ambient (all specs met)
- Relative Humidity 0 to 95° non-condensing
