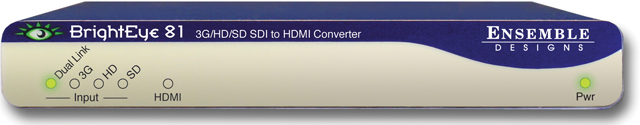

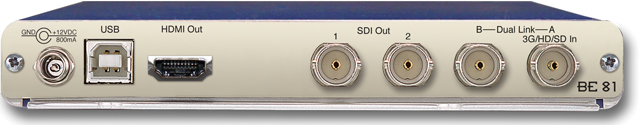

BrightEye 81 3G / HD / SD SDI to HDMI Converter

BrightEye 81 3G / HD / SD SDI to HDMI Converter from Ensemble Designs BrightEye 81 3G/HD/SD SDI to HDMI Converter from Ensemble Designs
  • 3G, HD and SD SDI to HDMI Converter
  • Use with Video Monitors that have HDMI Input
  • Dual Link to HDMI Converter
  • Dual Link to 3G SDI Converter
  • Use with HD or SD Signals
  • Passes Embedded Audio


Convert HD or SD SDI video feeds to HDMI with the BrightEye 81 SDI to HDMI converter. Convenient for feeding a video monitor, BrightEye 81 provides a reliable way to achieve confidence monitoring in post and broadcast applications.

BrightEye 81 supports standard definition video signals, 3 Gb/s and 1.5 Gb/s high definition signals. The HDMI output is not HDCP encrypted.

BrightEye 81 also functions as a Dual Link to HDMI and 3G SDI converter. When the input is Dual Link 4:4:4, the BrightEye 81 provides two identical SDI outputs that are the 3G Level B version of the input video, and the HDMI output is HD 4:4:4.

Signal monitoring and control is provided through the included BrightEye Mac or PC software.
