9455 3G Clean and Quiet Protection Switch
- Clean and quiet switch for 3G, HD and SD SDI signals
- Use for clean switching of asynchronous sources
for critical, live feeds
- Full frame synchronizer with adjustable delay
- Quiet audio switching
- Passes embedded audio
- External genlock reference input
- GPIs and TCP/IP for automation control
- Fail-safe bypass in case of power failure
- Local and remote control
- Memory Registers
A Clean Switch That’s Glitch-Free
The 9455 module is a clean and quiet protection switch for critical broadcast and satellite feeds. It switches cleanly between asynchronous sources which means it can be used live to air. The module has a full video frame synchronizer, rather than a line delay, ensuring perfect alignment of mis-timed and non-synchronous SDI sources.
Clean and quiet switching between sources requires that they be synchronous and precisely timed to each other. The 9455 accomplishes this automatically, with integral frame synchronization of the inputs, allowing operation with both synchronous and asynchronous (wild) sources. This frame synchronization feature not only means that the output of the 9455 will always be stable and glitch-free, but it also means that in the event of a total loss of both inputs, consistently timed color black will still be output.
These internal frame synchronizers can be genlocked to an external reference signal so that the output of the 9455 is synchronous to local sources. Alternately, in teleports, headends, and other multi-service facilities, where there is no logical common reference, the 9455 will internally generate an accurate reference.
The delay through the 9455 can be adjusted from one to eight frames, with independent control for the Primary and Secondary input paths. By operating with several frames of delay, the fault detection algorithms are given enough time to detect a failure in an input signal and switch to the backup before the fault has actually appeared on-air.
Glitch-free, quiet switching of embedded audio signals is achieved with the 9455’s precise synchronization and alignment of audio sources. Digital audio is de-embedded, and if it is linear PCM, sample rate converted, switched, and re-embedded. Encoded audio streams such as Dolby™ E are de-embedded and re-embedded but not processed in any way. PCM audio is supported with asynchronous sources, operation of encoded audio requires all sources to be synchronous, but not necessarily in time.
When a fault is detected in the primary input to the 9455, and the secondary input is verified as good, the switch will activate, causing the secondary input to be switched to the module’s output. The 9455 includes a passive, fail-safe path that ensures there is an output even in the event of a total power failure. The module can be set to automatically switch back to the primary after the fault condition clears. If both the primary and the secondary inputs signals are faulted, no switch occurs.
The health of a high definition or standard definition video signal is determined by monitoring crucial parameters in order of increasing complexity; Timing Reference Signal (TRS), or a persistent loss of digital sync is tested first. Black, Embedded Audio and Freeze are also evaluated. Each test can be configured by the user. For example, the sophisticated Black Detector includes configurable parameters for black level threshold, pixel count, and duration time.
The Freeze detection system can be set to detect a clean or noisy source. Freeze Time sets the number of seconds for the 9455 to switch to the secondary input after a video freeze condition is detected in the primary input.
Control and Alarms
Module controls are easily accessed through an Avenue Control Panel, Avenue PC software, GPIs, or the module’s front edge controls. GPI inputs allow faults detected in upstream equipment to contribute to the switching logic.More…
For software version 1.0.0
- Number Two
- Signal Type HD Serial Digital 1.485 Gb/s
- SMPTE 274M, 292M or 296M,
- HD Serial Digital 2.97 Gb/s
- SMPTE 424M, 425M,
- SD Serial Digital 270 Mb/s
- SMPTE 259M,
- Data as per SMPTE 337M
- Impedance 75 Ω
- Return Loss >15 dB to 1.5 GHz
- Max Cable Length 270 Mb/s 300 meters
- 1.485 Gb/s 100 meters
- 2.97 Gb/s 70 meters
- Automatic Cable Input Equalization
- 1080i 50, 59.94 or 60 Hz, SMPTE 274M -4,5,6
- 720p 50, 59.94 or 60 Hz, SMPTE 296M -1,2,3
- 1080p 23.98, 24 or 25 Hz, SMPTE 274M -9,10,11
- 1080p 50, 59.94 Hz, SMPTE 424M, 425M Level A
- 1080sF 23.98, 24 or 25 Hz, RP211 -14,15,16
- 625i 50, 525i 59.94

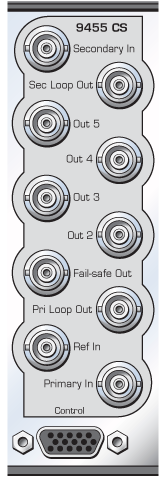

Serial Digital Loopback
- Number Two total
- One primary
- One secondary
- Impedance 75 Ω
- Number Six (includes one fail-safe bypass)
- Signal Type HD or SD Serial Digital, follows input
- Delay Adjustable up to 8 frames
- Impedance 75 Ω
- Return Loss >15 dB DC to 1.5 GHz
- Number One external (modules BNC)
- One internal (frame master ref BNC)
- Signal Type PAL or NTSC composite video or
- HD Tri-Level Sync
- Return Loss >40 dB
- Power Consumption 10 watts
- Temperature Range 0 to 40°C ambient (all specs met)
- Relative Humidity 0 to 95%, noncondensing
- Altitude 0 to 10,000 ft
