5130 Digital to Analog Composite Converter with Digital DA

  • Both a DA and a converter
  • Four serial digital outputs
  • Four composite monitor outputs
  • Reclocking and jitter reduction
  • Front panel indicators and remote monitoring
  • 525 and 625 operation
  • Excellent for facilities transitioning to digital
  • Passes embedded audio & all ancillary data

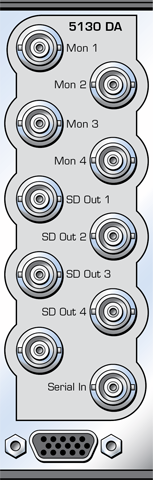

5130front 5130rear


Excellent for applications that need video distribution and signal monitoring, the 5130 module is both a serial digital DA and a digital-to-analog converter. The module has one serial digital input with four reclocked serial digital outputs and four composite monitor outputs.

Module status can be monitored through the Avenue Control Panels, Avenue PC and the LEDs located on the front edge of the module.
