5405 Dual Analog Sync Pulse Generator

• Use as Master Sync Gen or lock to external reference or GPS
• Two pair of composite outputs
• Primary and secondary outputs are independently time able
• Can provide 525 and 625 outputs simultaneously
• Remote control, monitoring and alarms

The 5405 Dual Analog Sync Generator is a stable video timing source that is perfect for local reference generation in broadcast, remote trucks and post. Two dual independent composite reference signals are generated.

The 5405 can operate from an internal precision frequency reference as a stand alone Master Sync Generator or lock to a video reference. For the ultimate in precision, the 5405 can lock to an external 10 MHz source, such as an atomic standard or GPS receiver.

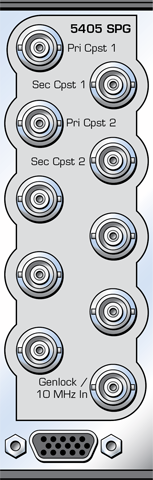

The primary output consists of two identical composite outputs. A separate pair of composite outputs form the secondary sync generator. Facilities that require multiple outputs can use the 5150 Distribution Amplifier module in conjunction with the 5405.

Each output set can be timed with respect to the reference to any point in the television frame. Color framing tracks the reference signal. Timing adjustments for primary and secondary outputs are configured independently. The 5405 can be configured to output 525 and 625 standards simultaneously. The secondary output can also track the primary.

Module control and monitoring is accessed through an Avenue Control Panel, and/or an Avenue PC.
