7550 HD/SD Video Processing Frame Synchronizer
- HD or SD SDI I/O
- Full featured Frame Synchronizer
- Comprehensive Proc Amp controls
- Line selectable toothed blanking
- External genlock reference input
- EDH detection and insertion
- Internal Color Bar Generator
- Automatic standard detection
- Total control through the Avenue control system
- Memory Registers
- Compatible with the full Avenue line
- 10 complete channels in just 3RU
- Accepts the 8415 Audio Processor option for tracking audio delay, audio mixing, shuffling
The 7500 HD Processing Frame Sync accepts a high definition or standard definition video signal for processing, synchronization and timing.
Flexible Synchronization

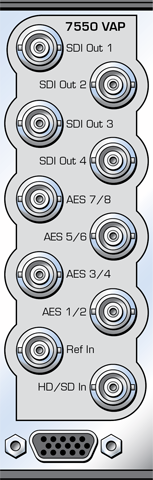

An infinitely adjustable timing system genlocks to your house reference. The 7550 genlocks to either composite video (PAL or NTSC) or to HD Tri-Level Sync. The module can lock to the frame’s master reference or reference can be connected directly to the module’s external reference NBC. The serial output timing can be set anywhere within a frame of the selected input reference, which can be the module’s external NBC reference or the frame’s master timing reference.
Upon loss of signal, the 7550 provides freeze frame or black until the signal is recovered. In freeze mode, audio can be muted or passed as desired.
Uncompromised Pictures
The HD or SD SDI input is carried at full, uncompressed bandwidth throughout the entire module, and EDH monitoring of the digital input alerts you to any incoming problem. EDH detection, monitoring and insertion are standard on the 7550. Flags are reported through Avenue PC.
Complete Proc Amp Functions
The 7550 has a full-featured Proc Amp for adjustment of every signal parameter. Proc controls include Video and Chroma Gain, NTSC style hue rotation, Black Balance, and Pedestal.
Selective (toothed) vertical blanking lets you choose to pass or strip content in the vertical interval on a line by line and field by field basis.
Audio Tracking
The 8415 Audio Processing option can be added to the 7550 module. The 8415 is an eight channel processor that has been designed to provide superior handling of embedded audio. Embedded audio is safely bypassed around the video framestore with the lip sync properly preserved.
Total Control
Every function and parameter on the 7550 and 8415 can be controlled from an Express Panel, Avenue Touch Panel, or the Avenue PC Control Application. Memory registers can be used to save the complete configuration of the module, making it easy to change instantly between different configurations.
Channel Density
Ten 7550 Video Processors (including the 8415 Audio Option) can be accommodated by the Avenue 3RU Frame. Now that’s an efficient use of real estate!
