BrightEye 45 HD/SD/ASI Electrical to Optical Converter

• Optical Transmitter
• Electrical to Optical Converter
• Use with HD or SD signals
• Use with ASI Signals
• Serves as a Distribution Amplifier

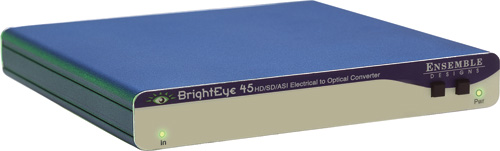

BrightEye 45 is an electrical to optical converter and distribution amplifier that can be used with high definition, standard definition or ASI signals. The video input is reclocked and presented on four BNCs and is also converted to an optical signal and presented on an optical SC connector. This optical output can drive single mode fiber to a distance of 20 kilometers. With an optical launch power attenuator, multi-mode fiber can also be used for longer cable runs.

This is a simple device with no USB port and no interface for BrightEye Mac or PC software. Front panel indicators show the presence of an input signal and power.

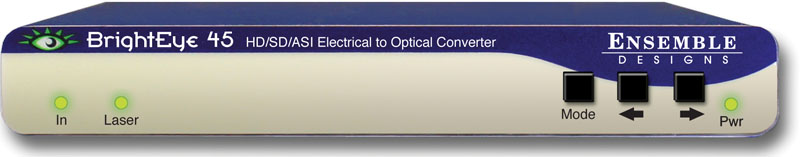

BrightEye 45 Front

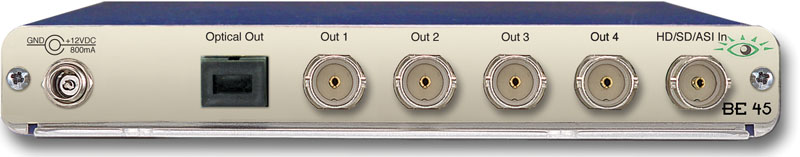

BrightEye 45 Rear
