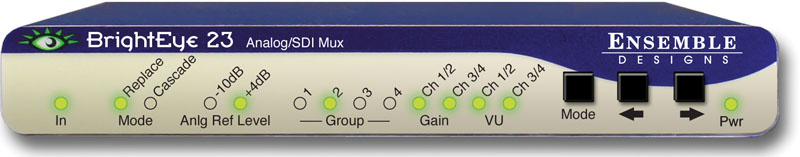

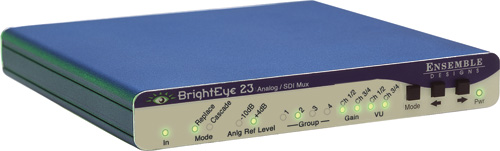

BrightEye 23 Analog to SDI Embedder

Use with VTRs, Workstations and Satellite Receivers
Audio Embedder

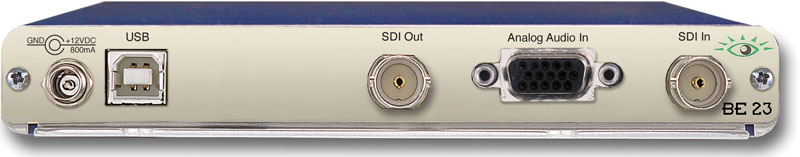

SDI and Analog Audio Inputs
Embedded SDI Output

BrightEye 23 is an embedder, or multiplexer with one serial digital video input and a four channel analog audio input. The four analog audio channels are digitized and then embedded into the 601 video stream. The output is a serial digital video stream that contains the original video plus the four analog audio channels.

Audio mixing, level adjustments, audio group selection, and channel shuffling are accessed through BrightEye Mac or PC software. A variety of audio connectors and adapters are available for integrating BrightEye 23 to any type of system.
