BrightEye 10 Optical/SDI to Analog/SDI Converter

• Optical Receiver
• Use with Monitors, VTRs and Projectors
• Optical or SDI Input
• SDI Output
• Analog Composite Output
• Component, S-Video Output
• 12 Bit

BrightEye 10 is a digital to analog video converter with both SDI (electrical) and fiber optic inputs. Output formats include Beta and SMPTE component, RGB, and composite (with simultaneous Y/C). Video processing, encoding and analog conversion is performed digitally at 12 bits of resolution with 8 times oversampling.

Front panel controls select between the optical and SDI input, choose the analog output format, and adjust gain. Video levels can be adjusted through BrightEye Mac or PC software.

The reclocked SDI output follows the input selector, thus providing optical to electrical conversion when the optical input is selected. BrightEye 10 combines fiber to SDI conversion and QC monitoring in one compact unit.

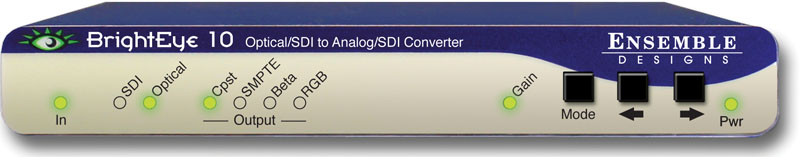

BrightEye 10 Front

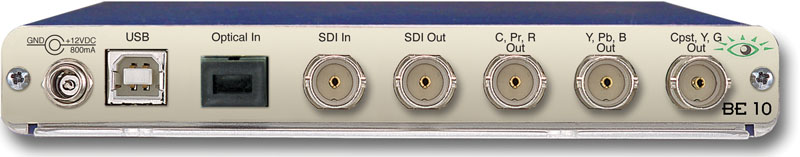

BrightEye 10 Rear
