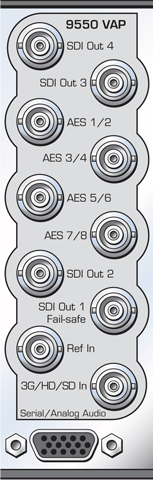

9550 3G / HD / SD Video Processing Frame Synchronizer
- 3G, HD or SD SDI I/O
- Full-featured Frame Synchronizer
- Comprehensive Proc Amp controls
- External genlock reference input
Description
The 9550 HD Processing Frame Sync accepts a 3 Gb/s or 1.5 Gb/s high definition video or standard definition video signal for processing, synchronization and timing.
Flexible Synchronization
An infinitely adjustable timing system genlocks to your house reference. The 9550 genlocks to either composite video (PAL or NTSC) or to Tri-Level Sync. The module can lock to the frame’s master reference or reference can be connected directly to the module’s external reference BNC. The serial output timing can be set anywhere within a frame of the selected input reference, which can be the module’s external BNC reference or the frame’s master timing reference.
Upon loss of signal, the 9550 provides freeze frame or black until the signal is recovered. In freeze mode, audio can be muted or passed as desired.
Uncompromised Pictures
The HD or SD SDI input is carried at full, uncompressed bandwidth throughout the entire module.
Complete Proc Amp Functions
The 9550 has a full-featured Proc Amp for adjustment of every signal parameter. Proc controls include Video and Chroma Gain, NTSC-style hue rotation, Black Balance, and Pedestal.
Audio Support
The 9550 includes a full-featured, sixteen-channel audio mixer. The channel swap and shuffle capability allows you to completely rearrange and remix audio channels. It provides precise control over audio level, with up to 12 dB of gain to compensate for low level sources. Delay is adjustable up to one second. The audio mixer can be used for embedded audio and for audio sourced from the AES or analog inputs. The 9615 AES and analog audio I/O software key option is required if you want to use the AES or analog inputs and outputs. The 9615 provides four AES input/output ports for eight channels of I/O and also provides four channels of analog audio I/O.
Dolby and AC-3
The 9550 can be fitted with Dolby and AC-3 encoding and decoding options. The 7615 decoding option can be fed from either an AES input or an AES stream disembedded from the incoming SDI signal. The resulting discrete surround signals are then selectable as inputs to the sixteen channel mixer/shuffler.
The 7630 Dolby encoder is fed from selected outputs of the sixteen channel mixer/shuffler. The resulting encoded bitstream can be output both on an AES output and embedded into the SDI output.
LevelTrack™ Audio Loudness Control AGC Software and Compliance Options
The 9670 LevelTrack Audio Loudness Control AGC software key can be added as an option. LevelTrack provides control for keeping audio levels consistent in program material.
The 9690 Audio Compliance and Monitoring Software can be added for compliance verification and archiving.
Total Control
Every function and parameter on the 9550 can be controlled from an Avenue Touch Panel or the Avenue PC Control Application. Memory registers can be used to save the complete configuration of the module, making it easy to change instantly between different configurations.
Order Info:
• 9550 3G/HD/SD Video Processor module
• 9550-XA 3G/HD/SD Video Processor module with extra audio outputs XA configuration provides 12 channels of AES I/O and 2 SDI outputs
• 7615 Dolby E, Dolby D, AC-3 Decoder sub module and software key option. Dolby processing options incur 1 frame delay
• 7630 Dolby E Encoder sub module and software key option. Dolby processing options incur 1 frame of delay
• 7635 Dolby D/AC-3 Encoder sub module and software key option. Dolby processing options incur 1 frame of delay
• 9615 AES, analog audio, and data I/O software key option
• 9670 Audio Loudness Control AGC software key option
• 9690 Audio Compliance and Monitoring Software
Downloads
-
-
For software version 2.2.10
-
Features
- 3G, HD or SD SDI I/O
- Full-featured Frame Synchronizer
- Comprehensive Proc Amp controls
- External genlock reference input
- Internal Color Bar Generator
- Passes embedded audio
- AES option for 4 streams/8 channels
- Analog audio I/O option
- Data mux and demux as per SMPTE 337M
- Dolby encoding and decoding options
- Audio Loudness Control AGC option
- Memory registers
Specifications
Input
- Number One
- Signal Type HD Serial Digital 1.485 Gb/s, SMPTE 274M, 292M or 296M, HD Serial, Digital 2.97 Gb/s, SMPTE 424M, 425M, SD Serial Digital 270 Mb/s SMPTE 259M
- Impedance 75 Ω
- Return Loss >15 dB DC to 1.5 GHz
- Max Cable Length 270 Mb/s 300 meters, 1.485 Gb/s 100 meters, 2.97 Gb/s 70 meters Belden 1694A
- Automatic Cable Input Equalization
Standards Supported
- 1080i 50, 59.94 or 60 Hz, SMPTE 274M -4,5,6
- 720p 50, 59.94 or 60 Hz, SMPTE 296M -1,2,3
- 1080p 50, 59.94 Hz, SMPTE 424M, 425M, Level A
- 625i 50, 525i 59.94
- Data (SMPTE 337M)
Output
- Number Four (one fail-safe bypass)
- Signal Type HD or SD Serial Digital, follows input
- Impedance 75 Ω
- Return Loss >15 dB DC to 1.5 GHz
- Delay up to 8 frames
Reference Input
- Number One external (modules BNC)
- One internal (frame master ref BNC)
- Signal Type PAL or NTSC composite video or Tri-Level Sync
- Return Loss >40 dB (applies to external ref input)
AES/EBU Digital Inputs (requires 9615 option)
- Number Four (total of eight channels) selectable as inputs or outputs
- Type AES3id or data (SMPTE 337)
- Connector Coaxial, 75 Ω
- Bit Depth 20 and 24 bit
- Sample Rate 30 kHz to 100 kHz (sample rate converted internally to 48 kHz)
- Crosstalk <144 dB
- Dynamic Range >144 dB
- Reference Level -18 or -20 dBFS (selectable)
AES/EBU Digital Outputs (requires 9615 option)
- Number Four (total of eight channels) selectable as inputs or outputs
- Type AES3id or data
- Connector Coaxial, 75 Ω
- Bit Depth 20 and 24 bit
- Sample Rate 48 kHz, synchronous to video output
- Reference Level -18 or -20 dBFS (selectable)
Analog Audio Inputs (requires 9615 option)
- Number Four, selectable as inputs or outputs
- Type Balanced
- Connector 15 pin D connector
- Impedance >15K Ω
- Maximum Input Level 24 dBu
- CMRR >60 dB, 20 Hz to 10 KHz
- Quantization 24 bits, 128 x oversampled
- Sample Rate 48 KHz
- Reference Level -10 dBu or +4 dBu
- Frequency Response ±0.1 dB, 20 Hz to 20 KHz
- Crosstalk <106 dB
- Dynamic Range >106 dB
Analog Audio Outputs (requires 9615 option)
- Number Four, selectable as inputs or outputs
- Type Balanced, transformerless
- Connector 15 pin D connector
- Impedance 30 Ω
- Maximum Output Level 24 dBu
- Resolution 24 bits, 128 x oversampled
- Reference Level -10 dBu or +4 dBu
- Frequency Response ± 0.1 dB, 20 Hz to 20 KHz
- Crosstalk <106 dB
- Dynamic Range >106 dB
Dolby Metadata Inputs/Outputs (requires 9615 option)
- Signal Type Dolby metadata, RS-422, RS-485
- Number Four, selectable as inputs or outputs, share with analog audio I/O
- Connector HD-15, balanced
Embedded Output (In SDI Outputs)
- Group Assign Cascade, or replace
- Channels Sixteen
- Bit Depth 24 Bit
General Specifications
- Power Consumption 10 watts
- Temperature Range 0 to 40°C ambient (all specs met)
- Relative Humidity
- 0 to 95%, noncondensing
- Altitude 0 to 10,000 ft
