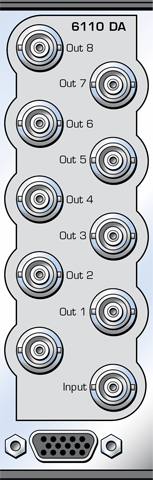

6110 AES / AC-3 / Dolby E Reclocking DA
- Supports AES, AC-3 and Dolby E
- 1 × 8 DA
- Reclocking and jitter reduction
- User definable alarms
- Local and remote control of module settings
Description
The 6110 module is a reclocking distribution amplifier for AES digital audio, AC-3 and Dolby E signals. The 6110 includes reclocking of the data stream, thereby improving jitter performance of the outputs where the input has jitter.
The 6110 can be controlled through an Avenue Control Panel and through Avenue PC.
Downloads
Specifications
Input Signal
- Number One
- Signal Type AES3id digital audio, AC-3 data, or Dolby E
- Impedance 75Ω
- Return Loss >40 dB to 5 MHz
- Max Cable Length 300 meters Belden 1894a
Output Signal
- Number Eight
- Signal Type Follows input
- Impedance 75Ω
- Return Loss >40 dB to 5 MHz
- Output DC None (AC coupled)
Sampling Frequency
- 32 kHz, 44.1 kHz, 48 kHz, 96 kHz
General Specifications
- Power Consumption <4.0 watts
- Temperature Range 0° to 40° C ambient (all specs met)
- Relative Humidity 0 to 95%, noncondensing
- Altitude 0 to 10,000 ft
