5600 Embedder / Disembedder with Channel Mix and Shuffle
- User selectable embedder and disembedder modes
- Channel mixer and shuffler
- Built-in sample rate converter accepts asynchronous inputs
- Four channel with two AES inputs and two AES outputs
- Optional analog audio inputs and outputs
- 20 or 24 bit inputs with 26 bit processing resolution
- Remote control and alarms
- Memory registers can be remotely recalled

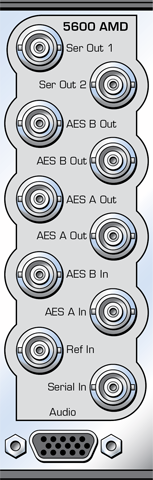

The 5600 module is a user selectable embedder or disembedder. The 5600 handles four channels of audio through AES inputs and outputs. Analog I/O is available as an option. AES inputs are sample rate converted, allowing the use of asynchronous audio.
When configured as a multiplexer, the 5600 has one 601 serial digital video input and two AES audio inputs. These two AES streams are embedded into the 601 video stream. The output of the module is a 601 digital stream that contains the original video signal and two AES pairs.
When configured as a demultiplexer, audio signals present in the incoming 601 signal are extracted and delivered as standard AES digital audio streams. In both modes, full channel swaps/shuffles can be made on the four embedded audio channels.
Module parameters, such as audio level and channel assignment, can be adjusted with an Avenue Touch Screen or Avenue PC. Individual control is provided over level and phase invert for each channel. Output channels are configurable as the combination (mix) of any input channels.
Analog audio I/O options include the 5610 Four Channel Analog Input sub module; the 5611 Four Channel Analog Output sub module; and the 5612 Two Channel Analog I/O sub module. The analog audio options can be used in addition to the AES I/O. A sub module can be plugged onto the 5600 and does not take up a slot in the frame.
For applications that require audio delay in addition to embedding or disembedding, the 5600 can be used in conjunction with the 6040 Tracking Audio Delay Module. Alternately, consider the 8400 or 8500 series modules.
