BrightEye 94 SD Aspect Ratio Converter
- SD ARC
- Timeable output
- HDMI output
- Frame Sync
- 12 and 16 bit processing
BrightEye 94 is a standard definition aspect ratio converter. You can easily convert signals from 4:3 to SD 16:9, and vice versa.
All vertical interval data and closed captioning are faithfully passed. Sixteen channels of embedded audio are supported. If the incoming video has embedded audio, the audio will be safely bypassed around the video processing and lipsync will be preserved. An external reference input allows genlock to a house reference.
Input selection, gain control, and test pattern controls are provided through the front panel interface. Audio presence LEDs indicate which channels are detected. Controls for crop, letterbox and pillarbox are accessed from the front panel or BrightEye Mac or PC software. A special Mirror Output Mode can be enabled, causing the output image to be flipped left to right for use with on-camera talent.

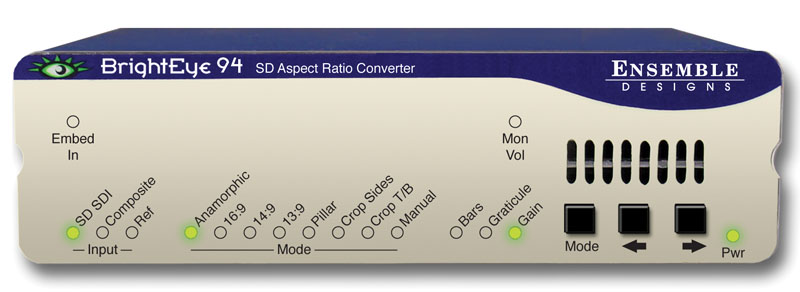

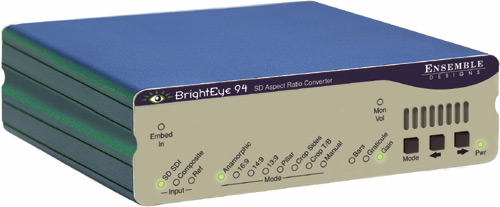

BrightEye 94 Front

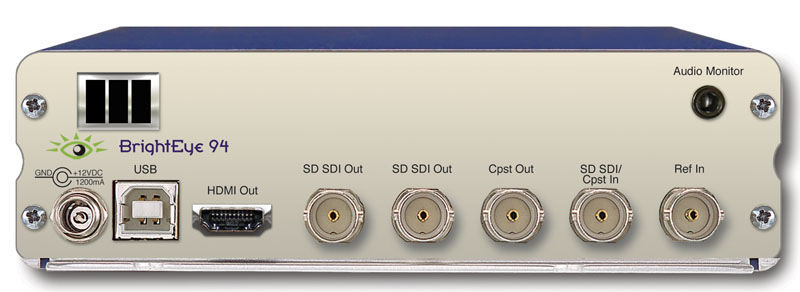

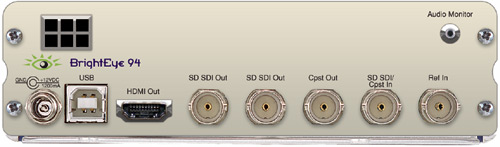

BrightEye 94 Rear
BrightEye 94 Specifications
Analog Video Input
- Number: One
- Type: Analog Composite PAL or NTSC
- Resolution: Digitized at 12 bits
- Impedance: 75 Ω
- Return Loss: >40 dB
- Input DC: +/-1 volt DC
- Input Hum: <100 mV
Serial Digital Input
- Number: One
- Signal Type: 270 Mb/s SD Serial Digital (SMPTE 259M)
- Impedance: 75 Ω
- Return Loss: >15 dB
- Max Cable Length: 300 meters for 270 Mb/s
Analog Video Output
- Number: One
- Type: Composite PAL or NTSC
- Return Loss: >40 dB
- Output DC: <100 mV
Reference Input
- Number: One
- Type: 1 V p-p Composite Video PAL or NTSC or Tri-Level Sync
- Impedance: 75 Ω
- Return Loss: >40 dB
Serial Digital Output
- Number: Two
- Type: SD Serial Digital 270 Mb/s SMPTE 259M-C
- Processing: 12 and 16 bit
- Impedance: 75 Ω
- Return Loss: >15 dB
- Max Cable Length: 300 Meters
Monitor Output
- Number: One
- Connectorization: HDMI
- Audio Monitoring: Output
- Number: One (select from eight channels)
- Connectorization: 3.5 mm stereo mini jack
General Specifications
- Size: 5.625” W x 1.7” H x 5.5” D (143 mm x 40 mm x 140 mm) including connectors
- Power: 12 volts, 7 watts (100-230 VAC modular power supply not included)
- Temperature Range: 0 to 40˚ C ambient
- Relative Humidity: 0 to 95%, non-condensing
