Description

BrightEye 93 converts between various HD standards, whether 720p or 1080i. Simply select the output standard you need and connect the input, that’s all there is to it. An external reference input allows genlock to a house reference.

All vertical interval data and closed captioning is faithfully passed. Sixteen channels of embedded audio are supported. If the incoming video has embedded audio, the audio will be safely bypassed around the video processing and lipsync will be preserved.

An external reference input allows genlock to a house reference. All vertical interval data and closed captioning is faithfully passed.

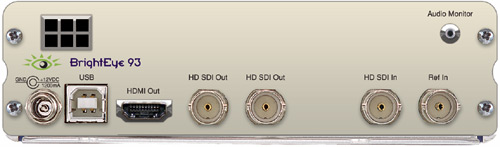

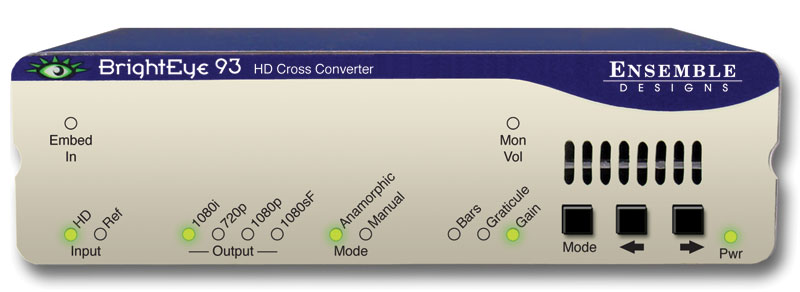

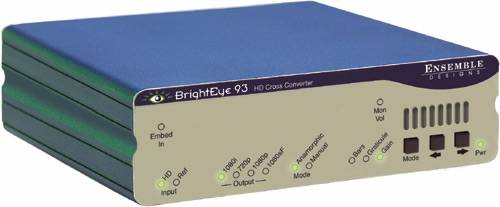

Input selection, gain control, and test pattern controls are provided through the front panel interface. Audio presence LEDs indicate which channels are detected.

BrightEye 93 Specifications

Serial Digital Input

• Number: One
• Signal Type: 1.485Gb/s HD Serial Digital (SMPTE 274M or 296M)
• Impedance: 75 Ω
• Return Loss: >15dB
• Max Cable Length: 100 meters for 1.485 Gb/s

Reference Input

• Number: One
• Type: 1 V p-p Composite Video, PAL or NTSC, or Tri-Level Sync
• Impedance: 75 Ω
• Return Loss: >40 dB

Serial Digital Output

• Number: Two
• Type: HD Serial Digital 1.485 Gb/s (SMPTE 274M or 296M-C)
• Processing: 12 and 16 bit
• Impedance: 75 Ω
• Return Loss: >15 dB
• Max Cable Length: 100 Meters for HD (Belden 1694A or equiv.)
• HD Standards Supported:
  • 1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60 Hz
  • 720p (SMPTE 296M -1,2,3) 50, 59.94 or 60 Hz
  • 1080p (SMPTE 274M -9,10,11) 23.98,24, 25 Hz
  • 1080sF (RP211 -14,15,16) 23.98, 24, 25Hz

Monitor Output

• Number: One
• Connectorization: HDMI

Audio Monitoring Output

• Number: One (Select from eight channels)
• Connectorization: 3.5mm stereo mini jack

General Specifications

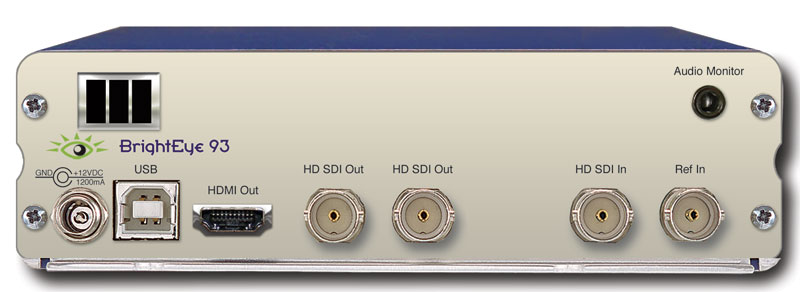

• Size: 5.625” W x 1.7” H x 5.5” D (143 mm x 40 mm x 140 mm) including connectors
• Power: 12 volts, 7 watts (100-230 VAC modular power supply)
• Temperature Range: 0 to 40˚ C ambient
• Relative Humidity: 0 to 95˚ non-condensing
