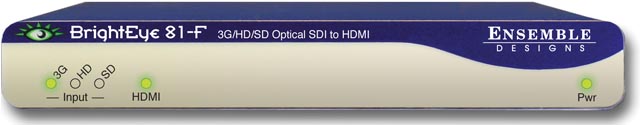

BrightEye 81-F Optical to HDMI and 3G / HD / SD SDI Electrical Converter
- Optical to HDMI Converter
- Optical to Electrical Converter
- Use with Video Monitors that have HDMI Input
- Use with HD or SD Signals
- 3G HD, Level A Supported
- Optical Receiver
- Passes Embedded Audio
Description
Convert optical HD or SD video feeds to HDMI and electrical with the BrightEye 81-F. Convenient for feeding a video monitor, BrightEye 81-F provides a reliable way to monitor optical feeds in broadcast and mobile applications.

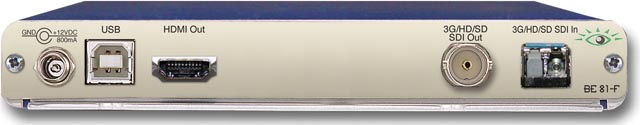

BrightEye 81-F is an optical to HDMI and electrical converter for use with standard definition video signals and 3 Gb/s and 1.5 Gb/s high definition signals. The video input is received on an optical LC connector, converted, and then output on both a BNC connector and an HDMI connector. The HDMI output is not HDCP encrypted.
For facilities using 3G, the issue of monitoring the signal becomes a challenge. A 3G video signal can be easily viewed via the HDMI output.
Signal monitoring and control is provided through the included BrightEye Mac and BrightEye PC software.
Downloads
-
-
For software version 1.0.0
Specifications
Optical Input
NUMBER
One, LC/UPC
TYPE
270 Mb/s (SMPTE 297M, optical equivalent of 259M)
1.485 Gb/s Gb/s HD Serial Digital (SMPTE 274M, 272M or 296M)
2.97 Gb/s HD Serial Digital (SMPTE 424M, 425M), Level A
WAVELENGTH
830 to 1610 nm
MAX CABLE LENGTH
20 km (For greater distances, or
higher power and larger loss budgets,
please contact the factory)
FIBER TYPE
Single Mode
Multi-mode compatible with
attenuation at transmit end
SDI STANDARDS SUPPORTED
1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60 Hz
720p (SMPTE 296M -1,2,3) 50, 59.94 or 60 Hz
1080p (SMPTE 274M -9,10,11) 23.98, 24, 25 Hz
1080sF (RP211 -14,15,16) 23.98, 24, 25 Hz
1080p (SMPTE 424M, 425M), 50, 59.94, 60, Level A
525i, 625i (SMPTE 259M)
HDMI Output
NUMBER
One
TYPE
HDMI 1.3
FORMAT
Follows input
Serial Digital Output
NUMBER
One, BNC
SIGNAL TYPE
Follows Input
IMPEDANCE
75 Ω
RETURN LOSS
>15 dB to 1.485 GHz
>10 dB to 2.97 GHz
OUTPUT DC
None (AC coupled)
General Specifications
SIZE
5.625” W x 0.8” H x 5.5” D
(143 mm x 20 mm x 140 mm)
including connectors
POWER
12 volts, 7 watts
(100-230 VAC modular power supply)
TEMPERATURE
0 to 40° C ambient (all specs met)
RELATIVE HUMIDITY
0 to 95° non-condensing
ALTITUDE
0 to 10,000 ft.
