Description

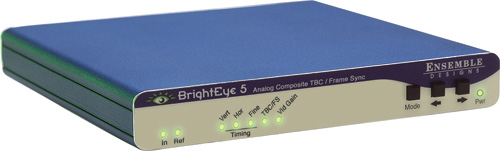

BrightEye 5 is a Time Base Corrector with analog composite inputs and outputs. 12 bit digital signal processing ensures the best signal handling and a solid output. BrightEye 5 will time base correct signals from analog sources such as consumer VCRs, cameras and noisy microwave receivers.

The analog input is converted at 12 bits of resolution for digital processing. The signal is time base corrected and frame synchronized to the reference input and converted back to analog for output. BrightEye 5 auto detects the video standard of the input (PAL or NTSC).

Basic controls are provided on the front panel. With BrightEye Mac or PC software, you can control video proc functions; Gain, Chroma, Pedestal, and Hue. The vertical interval can be passed or blanked.

BrightEye 5 Specifications

Analog Video Input

• Number: One
• Signal Type: NTSC, PAL Composite
• Impedance: 75 Ω
• Return Loss: >40 dB, DC to 5.5Mhz
• Input DC: +/-1 volt DC
• Input Hum: <100 mV

Reference Input

• Number: One
• Type: 1 V P-P Composite Video, PAL or NTSC
• Impedance: 75 Ω
• Return Loss: >40 dB

Performance

• Frequency Response: ±0.1 dB , 0 to 5.5 MHz
• K Factor: <1%
• ScH Phase Error: <±2°
• Differential Phase: <1°
• Differential Gain: <1%
• Signal to Noise: >65 dB
• Timing Window: Infinite (with respect to reference)
• Output ScH: Phase matches reference
• Timing Resolution: Adjustable to within 1° of subcarrier

Analog Video Output

• Number: Two
• Type: Composite PAL or NTSC (follows input)
• Return Loss: >40 dB
• Output DC: <100 mV

General Specifications

• Size: 5.625” W x 0.8” H x 5.5” D (143 mm x 20 mm x 140 mm) including connectors
• Power: 12 volts, 4 watts (100-230 VAC modular power supply)
• Temperature Range: 0 to 40° C ambient
• Relative Humidity: 0 to 95° non-condensing
