BrightEye 3 Analog to SDI Converter with TBC and Frame Sync

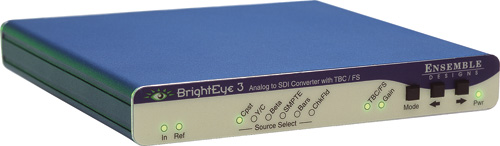

BrightEye 3 Analog to SDI Converter with TBC/Frame Sync from Ensemble Designs BrightEye 3 Analog to SDI Converter with TBC/Frame Sync from Ensemble Designs
  • Use with Cameras, Satellite Receivers and VHS Decks
  • Analog Input
  • SD SDI Output
  • TBC and Frame Sync
  • 12 Bit

Description

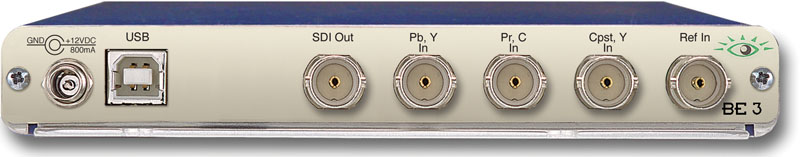

BrightEye 3 is an agile Time Base Corrector / Frame Synchronizer with composite, component and Y/C inputs and SD SDI video out. Input signals are digitized to 12 bits of resolution and time base corrected by a noise tolerant tracking circuit. An external reference input allows genlock to a timing reference such as color black.

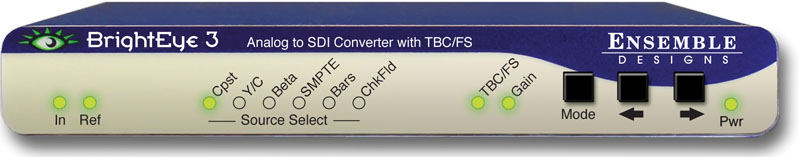

Input selection, gain control, and TBC enable is provided through the front panel interface. Video levels can be adjusted through BrightEye Mac or PC software.

Input and Reference presence are indicated through front panel LEDs. BrightEye 3 is great for capturing consumer VCRs into non-linear editing systems.
